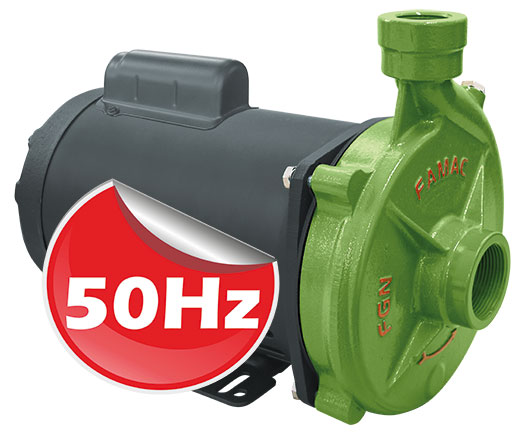

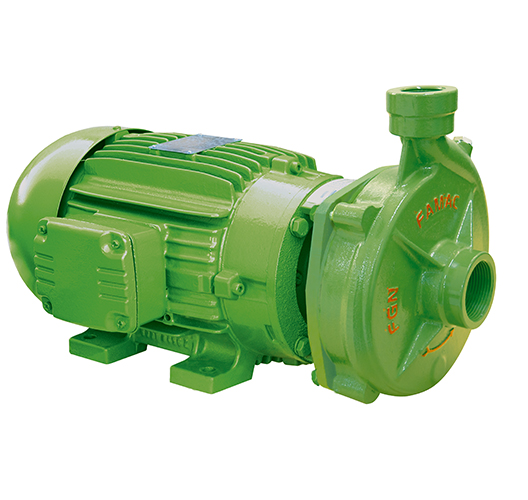

*Imagen ilustrativa
FGN
Tipo: Bomba centrifuga
Aplicaciones:
-
Residencial, edificación, suministro industrial, jardinería, pozo común, trasvase, lavado, hidroponía, nebulización, riego, circulación, refrigeración, calentador, presurización, extinción de incendios.
Tabla Hidráulica
Manual
Hablar con el técnico
Cables
Conexiones Eléctricas
Tabla Hidráulica
Catalogo tecnico
Manual
Hablar con el técnico
Cables
Conexiones Eléctricas
Dimensional
Vista en Despiece
BIM
Loading ...
Buscar entre artículos
52 Curvas encontradas.
Haga clic en la lupa para filtrar los campos de la siguiente tabla para buscar un modelo específico.
| detalle Detail |
Modelo
Modelo
|
CV
hp
|
Etapas
stage
|
Diámetro
Ø (mm)
|
Sólido.
(mm)
|
Rotación
(rpm)
|
Calibre (pulg.)
Size (inch)
|
Fase única
Single Phase (V)
|
Trifásico
Three Phase (V)
|
Tienda Seller | Compartir Compartir |
|---|---|---|---|---|---|---|---|---|---|---|---|
CURVAS
|
FGN-0 0,33cv/1/122mm/3500rpm | 1/3 | 1 | 122 | 0 | 3500 | 1 "x 1" | 110 / 127 / 220 / 254 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-0 0,50cv/1/130mm/3500rpm | 1/2 | 1 | 130 | 0 | 3500 | 1 "x 1" | 110 / 127 / 220 / 254 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-8 0,75cv/1/85mm/3500rpm | 3/4 | 1 | 85 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 0,75cv/1/85mm/3500rpm | 3/4 | 1 | 85 | 0 | 3500 | 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-7 0,75cv/1/90mm/3500rpm | 3/4 | 1 | 90 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-2 0,75cv/1/110mm/3500rpm | 3/4 | 1 | 110 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-1 0,75cv/1/135mm/3500rpm | 3/4 | 1 | 135 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-3 0,75cv/1/135mm/3500rpm | 3/4 | 1 | 135 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-8 1,0cv/1/90mm/3500rpm | 1,0 | 1 | 90 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 1,0cv/1/95mm/3500rpm | 1,0 | 1 | 95 | 0 | 3500 | 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-7 1,0cv/1/95mm/3500rpm | 1,0 | 1 | 95 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 1,0cv/1/100mm/3500rpm | 1,0 | 1 | 100 | 0 | 3500 | 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-4 1,0cv/1/117mm/3500rpm | 1,0 | 1 | 117 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-2 1,0cv/1/120mm/3500rpm | 1,0 | 1 | 120 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-4 1,0cv/1/122mm/3500rpm | 1,0 | 1 | 122 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-3 1,0cv/1/140mm/3500rpm | 1,0 | 1 | 140 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-1 1,0cv/1/145mm/3500rpm | 1,0 | 1 | 145 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-8 1,5cv/1/97mm/3500rpm | 1,5 | 1 | 97 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 1,5cv/1/105mm/3500rpm | 1,5 | 1 | 105 | 0 | 3500 | 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-7 1,5cv/1/105mm/3500rpm | 1,5 | 1 | 105 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 1,5cv/1/110mm/3500rpm | 1,5 | 1 | 110 | 0 | 3500 | 2 "x 1 1 / 2" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-4 1,5cv/1/127mm/3500rpm | 1,5 | 1 | 127 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-2 1,5cv/1/140mm/3500rpm | 1,5 | 1 | 140 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-3 1,5cv/1/150mm/3500rpm | 1,5 | 1 | 150 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-1 1,5cv/1/155mm/3500rpm | 1,5 | 1 | 155 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-3 1,5cv/1/155mm/3500rpm | 1,5 | 1 | 155 | 0 | 3500 | 1 1 / 2 "x 1" | 110 / 127 / 220 / 254 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-8 2,0cv/1/102mm/3500rpm | 2,0 | 1 | 102 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-7 2,0cv/1/112mm/3500rpm | 2,0 | 1 | 112 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 2,0cv/1/115mm/3500rpm | 2,0 | 1 | 115 | 0 | 3500 | 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-4 2,0cv/1/132mm/3500rpm | 2,0 | 1 | 132 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-4 2,0cv/1/142mm/3500rpm | 2,0 | 1 | 142 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-2 2,0cv/1/150mm/3500rpm | 2,0 | 1 | 150 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-3 2,0cv/1/158mm/3500rpm | 2,0 | 1 | 158 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-3 2,0cv/1/164mm/3500rpm | 2,0 | 1 | 164 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-8 3,0cv/1/115mm/3500rpm | 3,0 | 1 | 115 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-8 3,0cv/1/118mm/3500rpm | 3,0 | 1 | 118 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-7 3,0cv/1/125mm/3500rpm | 3,0 | 1 | 125 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-5 3,0cv/1/130mm/3500rpm | 3,0 | 1 | 130 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 3,0cv/1/130mm/3500rpm | 3,0 | 1 | 130 | 0 | 3500 | 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 3,0cv/1/135mm/3500rpm | 3,0 | 1 | 135 | 0 | 3500 | 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-7 3,0cv/1/130mm/3500rpm | 3,0 | 1 | 130 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-4 3,0cv/1/150mm/3500rpm | 3,0 | 1 | 150 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-2 3,0cv/1/160mm/3500rpm | 3,0 | 1 | 160 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-4 3,0cv/1/160mm/3500rpm | 3,0 | 1 | 160 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-2 3,0cv/1/164mm/3500rpm | 3,0 | 1 | 164 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-4 3,0cv/1/164mm/3500rpm | 3,0 | 1 | 164 | 0 | 3500 | 1 1 / 2 "x 1" | 110/127/220/254/440/508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-8 4,0cv/1/127mm/3500rpm | 4,0 | 1 | 127 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 220 / 254 / 440 / 508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-8 4,0cv/1/130mm/3500rpm | 4,0 | 1 | 130 | 0 | 3500 | 2 1 / 2 "x 1 1 / 2" | 220 / 254 / 440 / 508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-5 4,0cv/1/145mm/3500rpm | 4,0 | 1 | 145 | 0 | 3500 | 1 1 / 2 "x 1" | 220 / 254 / 440 / 508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-6 4,0cv/1/145mm/3500rpm | 4,0 | 1 | 145 | 0 | 3500 | 2 "x 1 1 / 2" | 220 / 254 / 440 / 508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-2 4,0cv/1/164mm/3500rpm | 4,0 | 1 | 164 | 0 | 3500 | 1 1 / 2 "x 1" | 220 / 254 / 440 / 508 | 220/380/440 | Donde comprar |
|
|
CURVAS
|
FGN-2 0,50cv/1/110mm/2900rpm | 1/2 | 1 | 110 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-2 0,75cv/1/120mm/2900rpm | 3/4 | 1 | 120 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-2 1,0cv/1/140mm/2900rpm | 1,0 | 1 | 140 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-2 2,0cv/1/164mm/2900rpm | 2,0 | 1 | 164 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-2 3,0cv/1/164mm/2900rpm | 3,0 | 1 | 164 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-3 0,50cv/1/135mm/2900rpm | 1/2 | 1 | 135 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-3 0,75cv/1/140mm/2900rpm | 3/4 | 1 | 140 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-3 1,0cv/1/155mm/2900rpm | 1,0 | 1 | 155 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-3 1,5cv/1/164mm/2900rpm | 1,5 | 1 | 164 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-4 1,5cv/1/142mm/2900rpm | 1,5 | 1 | 142 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-4 2,0cv/1/160mm/2900rpm | 2,0 | 1 | 160 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
|
CURVAS
|
FGN-5 3,0cv/1/145mm/2900rpm | 3,0 | 1 | 145 | 0 | 2900 | 1 1 / 2 "x 1" | 220 | 220/380 | Donde comprar |
|
